22234BKD1
22234BKD1使用说明
NTN 22234BKD1-------杜绝假冒，假一赔十
调心滚子轴承 22234BKD1使用范围
使用机械：闸阀、其他商业专用设备、保鲜柜、废气除臭装置、五金。等机械设备。
22234BKD1的配套型号
我们的服务
质保和售后：为保证需方订购货物尽快抵达，请需方在下订单的时候务必以明确的方式告知我方收货地址，电话以及发货方式。本公司可根据客户要求的发货方式，采取空运（EMS、顺风快递、申通快递...）、汽运、火车包裹、中铁快运、送货上门或客户指定的其它方式发货！
退换货条例：具体事宜请联系客服人员。

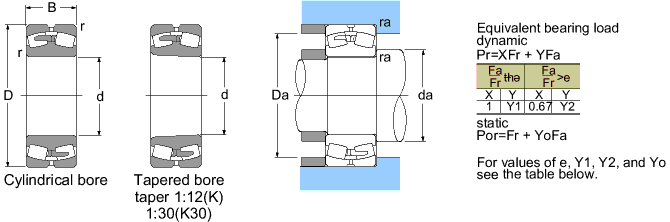

| 名字 | 值 | 说明 |
|---|---|---|
| weight | N/A lbs | |
| weight | N/A kg | |
| Bore d | 6.6929 in | |
| O.D.D. | 12.2047 in | |
| Width B or W | 3.3858 in | |
| rs min | 0.1575 in | |
| da min | 7.4016 in | |
| da max | 11.4960 in | |
| Da min | 0.1181 in | |
| Da max | 0.0110 in | |
| ras max | 0.0941 in | |
| e | 0.1402 in | |
| Y1 | 0.0921 in | |
| Y2 | ||
| Y0 | ||
| Bore d | 170.000 mm | |
| O.D.D. | 310.000 mm | |
| Width B or W | 86.000 mm | |
| rs min | 4.000 mm | |
| da min | 188.000 mm | |
| da max | 292.000 mm | |
| Da min | 3.000 mm | |
| Da max | 0.280 mm | |
| ras max | 2.390 mm | |
| e | 3.560 mm | |
| Y1 | 2.340 mm | |
| Y2 | ||
| Y0 | ||
| Series | 223 | 223 Spherical Roller Bearing Series |
| Intrnl Dsgn | B | Asymmetrical rollers |
| Cage | Standard cage | |
| Ring Mod. | KD1 | 1/12 tap. bore, Lub holes & groove on outer/inner ring |
| Internal Clr. | Normal internal clearance | |
| Tolerance | Class 0 (equiv. to ABEC 1); standard | |
| Static | 341,713 LBF | Basic Load Ratings |
| Dynamic | 224,869 LBF | Basic Load Ratings |
| Static | 1,520,000 N | Basic Load Ratings |
| Dynamic | 1,000,000 N | Basic Load Ratings |
| Oil | 1,500.00 RPM | Limiting Speeds |
| Seals | N/A | Limiting Speeds |
| Grease | 980.00 RPM | Limiting Speeds |
